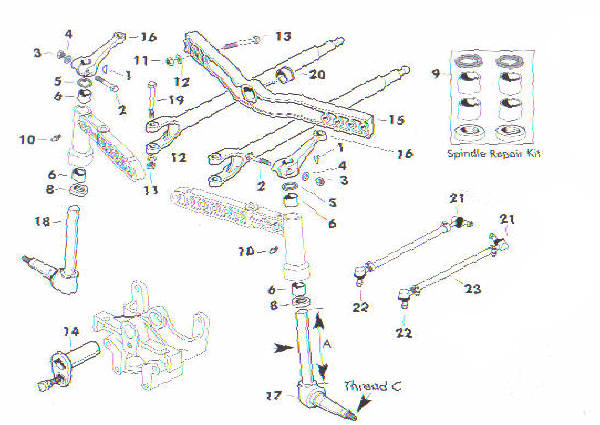

Front End Parts

Fergie Front Wheel Bubs & Bearings
Fergie Steering Wheels & Parts

1

Spindle Woodruff Key, for:
TE20, TEA20, TED20, TEF20, TO20

$1.75US

2

Steering Arm Pinch Bolt, for:
TE20, TEA20, TED20, TEF20, TO20

$5.50US

3

Steering Arm Pinch Bolt, for:
TE20, TEA20, TED20, TEF20, TO20

$1.75US

4

Steering Arm Pinch Bolt Washer, for:
TE20, TEA20, TED20, TEF20, TO20

$1.25US

5

Spindle Dust Seal, for:
TE20, TEA20, TED20, TEF20, TO20

$3.00US

6

Spindle Bushing, for:
TE20, TEA20, TED20, TEF20, TO20

$5.50US

7

Tie Rod Boot, for:
TE20, TEA20, TED20, TEF20, TO20

$3.00US

8

Spindle Thrust Bearing, for:
TE20, TEA20, TED20, TEF20, TO20

$14.00US

9

Spindle Repair Kit, for:
TE20, TEA20, TED20, TEF20, TO20

$42.50US

10

Spindle Grease Nipple, for:
TE20, TEA20, TED20, TEF20, TO20

$.50US

11

Axle Adjustment Nut, for:
TE20, TEA20, TED20, TEF20, TO20

$.50US

12

Axle Adjustment Washer, for:
TE20, TEA20, TED20, TEF20, TO20

$.50US

13

Axle Adjustment Bolt, for:
TE20, TEA20, TED20, TEF20, TO20

$4.00US

14

Axle Pivot Pin, for:
TE20, TEA20, TED20, TEF20, TO20

$65.00US

15

Later Type Swept Back Axle Beam, for:
TE20, TEA20, TED20, TEF20, TO20

$175.00US

16

Steering Arm, for:
TE20, TEA20, TED20, TEF20, TO20

$50.00US

17

LH Spindle, for:
1¼" dia., 11" vertical shaft, ¾"UNF Thread
TE20, TEA20, TED20, TEF20, TO20

$130.00US

18

RH Spindle, for:
1¼" dia., 11" vertical shaft, ¾"UNF Thread
TE20, TEA20, TED20, TEF20, TO20

$130.00US

19

Radius Rod Bolt, for:
TE20, TEA20, TED20, TEF20, TO20

$5.50US

20

Axle Beam Pivot Pin Bushing, for:
TE20, TEA20, TED20, TEF20, TO20 (Early Axle)

$15.00US


20

Axle Beam Pivot Pin Bushing, for:
TEA20, TED20, TEF20, TO20 (Late Axle)

$15.00US

21

Drag Link End (LH Thread), for:
TEA20, TED20, TEF20, TO20

$35.00US

22

Drag Link End (RH Thread), for:
TEA20, TED20, TEF20, TO20

$32.50US

23

Drag Link Tube (no ends), for:
TE20, TEA20, TED20, TEF20, TO20

$27.50US
