Brake Parts

Fergie Brake Pedal Parts HERE

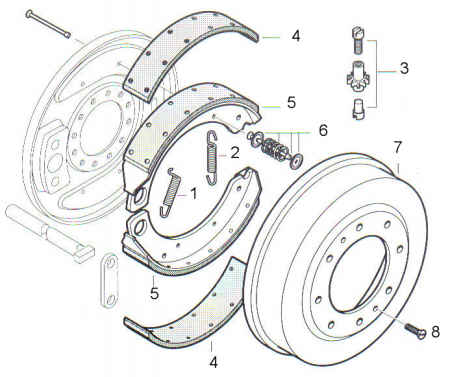

1

Brake Return Spring 1, for:
overall length: 4"
coil length: 2 3/8"
Coil Diameter: 5/8"

TEA20, TEF20 SN 200001 & Up

$3.00US

2

Brake Return Spring 2, for:
overall length: 5 3/16"
coil length: 2 11/16"
Coil Diameter: 5/8"

TEA20, TEF20 FE35

$2.50US

3

Brake Adjuster Assembly, for:
(can replace early-style adjusters)

TEA20, TEF20 TO20, TO30, TO35, FE35

$25.00US

4

Brake Lining Kit, for:
(4 linings & 48 rivets)

TE20, TEA20, TEF20

$50.00US

5

Brake Shoe, Bonded (Pair), for:
TO20, TO30

$45.00US


5

Brake Shoe, Bonded (Pair), for:
TO35, F40

$60.00US

6

Pin Kit, for:
(does both sides of tractor) TO20, TO30, TE20 (80MM Engine)

$17.50US

7

Brake Drum, for:
TEA20, TEF20, TO35, FE35, F40

$95.00US

8

Screw, for:
TEA20, TEF20, TO35. FE35, F40

$1.75US

Complete Back Plate Assembly, for:
FE35

$325.00US

Brake Rivet Kit:
(contains 12 rivets)

$7.50US
