IH Fuel System Parts

Click HERE for starters, generators, ignition switches, & glow plugs

Injection Pump Diaphragm, for: B250 B275 equipped with Sims inline pneumatic governor pump $52.50US

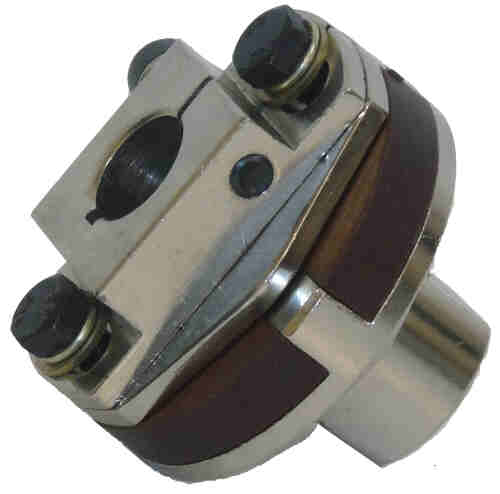

Injection Pump Lovejoy Drive Coupler, for: B250 B275 equipped with Sims inline pneumatic governor pump $125.00US

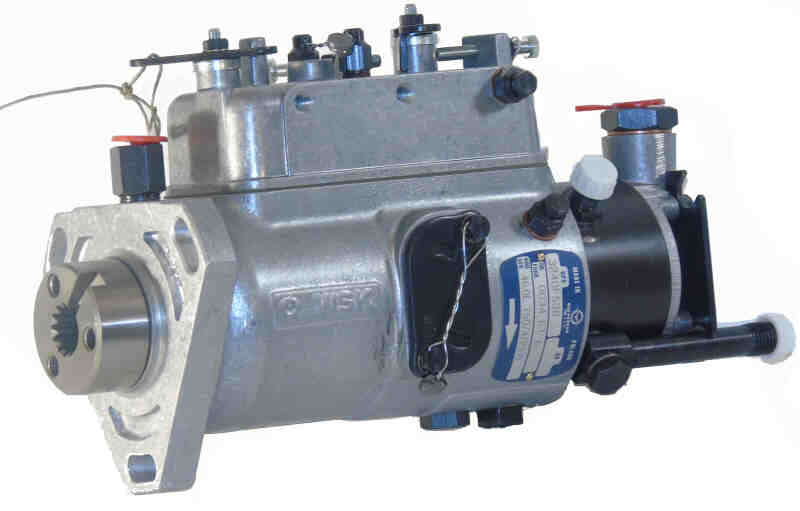

Rotary Style CAV Injection Pump Assembly, New, not rebuilt, for: B275 late models with CAV pump 276, 354, 364, 374, 384 B414, 424, 434, 444 2276, 3414, 3434, 3444 Industrials TD5, 500 Crawlers PN 3040869R92, 3044494R92, CAV number 3240F538 No core required $949.50US

Injector Nozzle (1), for: B275, 276, B275, 354, 364, 374, 384 B414, 424, 434, 444 PN 3040871R91, CAV/Lucas number N4SD6299, 5643095, BDN4SD6299 $59.50US

Fuel Pump, for: B275, 276, B275, 354, 364, 374, 384 B414, 424, 434, 444 $59.50US

Fuel Pump, for: IH 475 $59.50US

Fuel Pump, for: 454, 474, 574, 674 DIESELS ONLY $59.50US

Fuel Tank Cap, for: B275, 276, B275, 354, 364, 374, 384 B414, 424, 434, 444 $18.50US

Glass Fuel Bowl (square bottom), for: B275, 276, 354, 364, 374, 384 B414, 424, 434, 444, 454, 464, 474 2276, 2424, 2444, 3414, 3434, 3444 484, 584, 684, 784, 884, Hydro 84 385, 485, 585, 685, 785, 885 383, 423, 433, 453, 533, 553, 654, 724, 824 up to SN 017853 633 up to SN 30931 733 up to SN 010057 833 up to SN 003352 644 up to SN 074715 744 up to SN 559347 844 up to SN 0016859 946, 1046, 955, 955XL, 1055, 1055XL $12.50US

Glass Fuel Bowl, (tapered bottom) for: B275, 276, 354, 364, 374, 384 B414, 424, 434, 444, 454, 464, 474 2276, 2424, 2444, 3414, 3434, 3444 484, 584, 684, 784, 884, Hydro 84 454, 474 $9.50US

Carburator Kit for: IH 284 NOTE: fits carbs with vaccuum line on base of carb $115.00US

Carburator Kit for: IH B275, B414, 276, 354, 434, 444 British NOTE: fits carbs without accelerator pump $150.00US CALL

Carburator Kit for: IH B275, B414, 276, 354, 434, 444 British NOTE: fits carbs WITH accelerator pump $150.00US CALL

Fuel Filter, for: B275 (SN 33526A & Up), 276, 323, 354, 364, 374, 383 384, 484, 584, 684, 784, 884, Hydro 84 B414, 434, 444, 454, 474, 475 385, 485, 485XL, 585, 685, 785, 885 423, 433, 453, 533, 553, 633, 733, 833 574, 674, 646, 654, 724, 743XL, 644, 744, 824, 844 946, 955, 955XL, 1046, 1055, 1055XL, 1246 C60, CX50, CX60 2276, 2350A, 3434 ALL TRACTORS: CAV System $5.50US

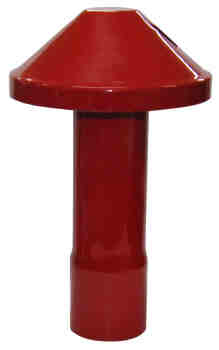

Air Breather Cap, for: B250, B275, B414 $32.50US
